Product Series
6400 Series
The basic designs of single row deep groove ball bearings are open and sealed.
Key words:
Category:
Deep Groove Ball Bearings
E-mail：
WhatsApp：
6400 Series
The basic designs of single row deep groove ball bearings are open and sealed. For manufacturing reasons, open bearings of the same size as sealed or dust-proof bearings may also have seal grooves in the outer ring. Bearings with shields or seals on both sides are maintenance-free, lubricated for life. Such bearings cannot be cleaned and the temperature cannot exceed 80 degrees Celsius.
|
Bearing Number |
d mm |
D mm |
B mm |
|
6403 |
17 |
62 |
17 |
|
6404 |
20 |
72 |
19 |
|
6405 |
25 |
80 |
21 |
|
6406 |
30 |
90 |
23 |
|
6407 |
35 |
100 |
25 |
|
6408 |
40 |
110 |
27 |
|
6409 |
45 |
120 |
29 |
|
6410 |
50 |
130 |
31 |
|
6411 |
55 |
140 |
33 |
|
6412 |
60 |
150 |
35 |
|
6413 |
65 |
160 |
37 |
|
6414 |
70 |
180 |
42 |
|
6415 |
75 |
190 |
45 |
|
6416 |
80 |
200 |
48 |
|
6417 |
85 |
210 |
52 |
|
6418 |
90 |
225 |
54 |
|
6420 |
100 |
250 |
58 |
|
6422 |
110 |
280 |
65 |
|
6426 |
130 |
340 |
78 |
Last
Next
Last
6700 Series
Next
Advantages
The product is widely used as a supporting product in industries such as metallurgy, mining, petroleum, chemical, coal, cement, papermaking, wind power, heavy machinery, engineering machinery, agricultural machinery, port machinery, etc.
01
Suitable for mass production, with stable and reliable quality and high production efficiency
02
Standardized size, interchangeable, easy to install and disassemble, and easy to maintain
03
Compact structure, light weight, and reduced axial size
04
High precision, high load, low wear, and long service life
05
The starting friction torque is only slightly higher than the rotational friction torque
06
Suitable for mass production, with stable and reliable quality and high production efficiency
07
The transmission friction torque is much lower than that of hydraulic bearings, resulting in lower friction temperature rise and power consumption
08
Some bearings have automatic centering performance

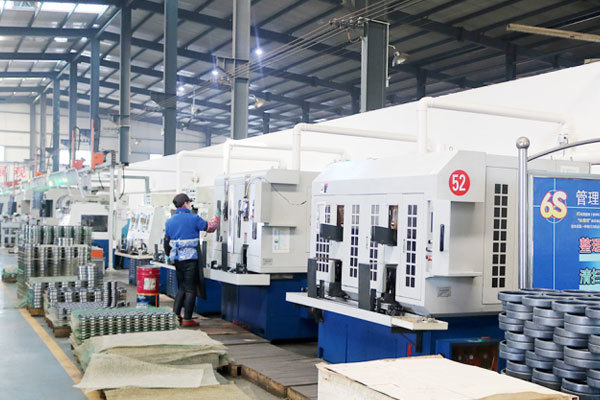

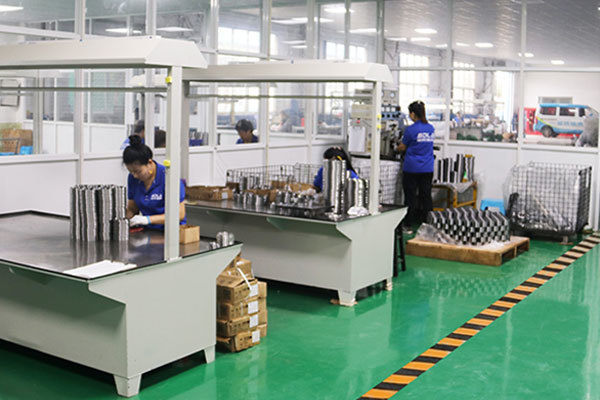

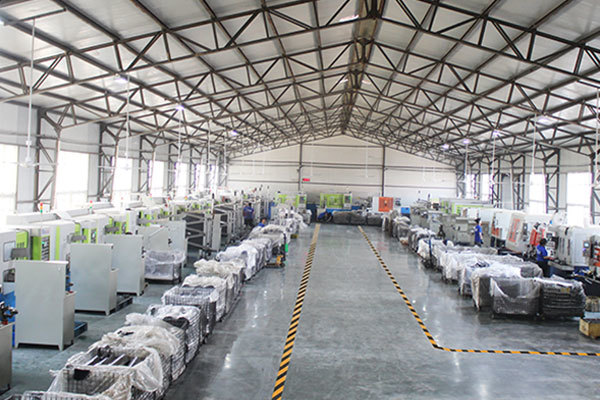

Processing Factory
